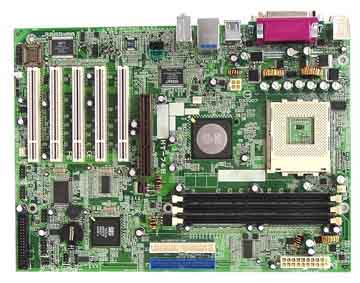

AMD Athlon Duron Sempron FIC KT-748

The new KT-748 motherboard supports the AMD processors and boasts an abundance of on-board features. Advanced features include a FSB of up to 400MHz, supports for up to 3GB of DDR SDRAM, Ultra DMA ATA 66/100/133, on-board 5.1 channel audio, on-board LAN interface, USB 2.0 support and optional IEEE1394 ports. The KT-748 is a standard ATX form factor with 5 PCI slots and 1 AGP 8X slot.

Special Features:
* SiS 748, SiS 963/963L
* Supports DDR 400/333/266 memory
* Max Memory 3 GB
* 5 x PCI
* Realtek ALC650 5.1 Channel Codec
* 2 IDE Connectors Support ATA 66/100/133

Supported Processors:
* AMD Athlon XP Processors
* AMD Athlon Procesors
* AMD Duron Processors
* Supports 200/266/333/400 MHz System Data Bus

Chipset:
. SiS 748
. SiS 963/963L

Main Memory:
* 3 DIMM Slot
* Support PC3200/2700/2100 DDR SDRAM
* SPD Support
* Non ECC support
* Max. Cap. is 3 GB

Expansion Slots:
* 1 x AGP 8X (Featuring AGP 8x, this new generation VGA interface specification offers a high bandwidth speed of up to 2.12GB/s, for realistic gaming and vivid cinematics.)
* 5 x PCI slots

Audio:
* Realtek ALC650 5.1 Channel Codec

LAN:
* Realtek 8100C 10/100 Lan

BIOS:
* ACPI, APM, DMI, SMBIOS, PnP, USB, PC99, PC2001, Y2K Compliant

On-Board IO:
* 1 PS/2 mouse and 1 keyboard connector
* 1 x Audio connector: MIC-In, Line-In, Line-Out
* 2 Serial ports
* 1 RJ-45 connector
* 1 Parallel Port
* 4 rear USB connectors and 1 front pin-header supports
* 6 devices (USB 2.0 support), (The USB 2.0 interface offers simple and quick connectivity of computer peripherals and boasts a data transfer rate of up to 480Mbps, 40 times faster than USB1.1.)

On-Board IDE:
* 2 IDE Connectors
* ATA 66/100/133

NOVUS Features:
* BIOS Guardian
* Overclock Partner
* HotKey
* Logo Genie II

Form Factor & Layers:
* ATX - 9" x 12"

For more info click HERE

Also included:

Manual, Utilities CD, I/O faceplate.
