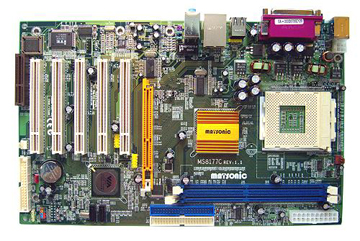

MATSONIC MS8177C

Supported Processors:
* 462 pin Socket A supports AMD K7 processors, full series of Athlon XP/ Athlon/ Duron / Sempron processors. Supports 600MHz up to 3200+ MHz processor and faster

Special Features:
* FSB 400: Supports 400 MHz front side bus
* AGP 8X: AGP/8X / AGP 3.0 enables enhanced graphics performance with high bandwidth speed up to 212Gb/s.
* Supports USB 2.0: USB 2.0 is the latest connectivity standard which delivers transfer speed up to 480Mb/s for data transfers

Chipset:
* VIA KT600+VT8237 two chip AGPset
* 8X V-Link 533MB/s high bandwidth North/South Bridge interconnect

FSB:
* 400/333/266/200 MHz

Main Memory:
* 2 x 184-pin DIMM socket support up to 2 GB
* Support DIMMs of DDR400/333/266

Graphics Adapter Slot:
* Supports AGP 3.0 Including 2X/4X/8x AGP Data Transfers
* Support Maximum AGP interface bandwidth 2.1GB/s

Serial ATA Ports:
* Supports 2-ports S-ATA running at 150 MB/s
* Fully compatible with soon-to-be-released serial ATA HDD, CDROM and other cutting edge devices
* Supports the hot plug function and better cabling.

USB2.0:
* 480 Mbps data capacity
* Backwards compatible with USB 1.1

Expansion Slots:
* 1 x AGP 8X slot
* 1 x CNR (Communication Network Riser)
* 5 x PCI 2.2 32-bit Master PCI Bus slots

Storage:
* Supports two IDE ports up to 4 ATAPI devices
* Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering

Audio:
* Supports built-in AC97 Digital Audio.
* Dual full-duplex Direct Sound channels.
* H/W Sound Blaster Pro DOS Legacy compatibility.
* FM Synthesis for legacy compatibility.
* Supports game or MIDI port.

LAN:
* 10/100Mbps Fast Ethernet LAN on board
* Supports IEEE 802.3 and 802.3u standards
* Fully compliant ANSI X3.263 TP-PMD physical sub-layer

BIOS:
* 2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU
* Fully compliant to PC'97 and PC'98 Spec

Rear Panel I/O:
* 1 x PS/2 keyboard & PS/2 mouse connectors
* 8 x USB2.0 Ports (four backpanel ports, onboard USB headers providing four extra ports)
* 1 x RJ45 LAN connector
* 1 x EPP/ECP mode Parallel port (LPT1)
* 1 x 16550 high-speed Serial port (COM1)
* 1 x Audio ports (Line-in, Line-out, Mic-in)

Internal I/O Connectors and Headers:
* Supports Plug and Play function
* 1 x 20-pin ATX Power Supply Connector
* 4-pin ATX 12V Power Supply connector
* 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120
* 2 x IDE connectors - support four IDE devices
* 1 x S/PDIF out header, 1 x CD-in header
* 2 x USB 2.0 header support additional 4 USB ports
* 1 x Front panel switch/LED header
* 1 x Front panel audio header
* CPU, power and chassis Fan headers
* HDD LED, ACPIMSG LED, Reset Switch, Power Switch headers

Form Factor:
* ATX (304mm*190mm)

For more info click HERE

Also included:

Manual, Utilities CD, I/O faceplate.
