Shuttle XPC SB86i: A silent approach
This small form factor computer puts cutting-edge performance with silent operation affordably within your reach - in half the space. With highly evolved engineering and design strategies for thermal dissipation, noise minimization, portability and stability, this excellent XPC is one deep cut above.
Power your digital workflow, home media center or games with this high-performance, super-stable Shuttle XPC. And, because the XPC is fully customizable, you can pick the processor, memory, storage and expansion options that fit your needs. Built-in FireWire®400, USB2.0 8-in1 card reader and 8-channel digital audio ports make it easy to get media - video, photographs, music-in and out of this lighting fast computer. Then share it all with friends and family using the excellent integrated networking features - The XPC by Shuttle.
Performance features
A masterpiece of integration, the SB86i is based around the Intel® 915G + ICH6-R chipset. Supporting new to market socket 775 Prescott processors, the 915G chipset will support a fast 800MHz FSB. In addition, this machine is equipped with a dual-channel DDR 400 memory controller and room for two RAM modules. Furthermore, integrated PCI Express x16 interface delivers twice the bandwidth of 8X AGP.
 |
Intel GMA 900 Graphics
Intel's new integrated graphics architecture raises the bar for integrated graphics performance. GMA900 offer a 333MHz graphics core and 32bpp True Color Support for sharper, more detailed http://global.shuttle.com/Product/images. Further , industry-first DX8/DX9 support and enhanced 3D performance features, such as software Vertex Shader and Shadow Mapping, mean the GMA900 delivers great 2D and 3D performance.
|
Southbridge Integration
The ICH6-R brings next generation I/O capabilities such as 4 Serial ATA headers with RAID striping and mirroring functionality. Further, integrated 8-channel audio delivers 100dB plus surround sound audio, while (8) USB 2.0 ports (FireWire® 400 from VT6207) provide great connectivity.
|
Matrix Storage Technology
The innovation continues with the inclusion of Matrix RAID Technology (USB floppy drive required for installation), which combines the benefits of RAID 0 performance and RAID 1 protection on two hard drives. For example, games and video editing benefit from improved performance, while valuable personal photos and financial records can be better protected from a drive failure.
|
Clear CMOS
Shuttle's easy-access Clear CMOS button makes it easy to restore BIOS. First introduced in the XPC Zen, this feature has become extremely popular with system integrators and enthusiasts alike.
|
High Definition Audio
7.1- channel audio delivers eight channels at 192 kHz/32- bit quality. In addition, Intel HD Audio is architected to prevent the glitches or pops of third-party audio solutions.
i-Series Chassis
A masterpiece
With over five years of SFF design experience, Shuttle is well known for its high-quality industrial design, feature integration and easy installation. Our latest model, the "i" continues and goes even further, introducing several new noise reduction technologies that make this XPC the quietest ever built.
|

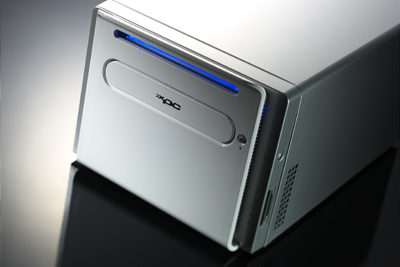

Front Panel
Stealthed optical drive - the "i's" clean fascia is thanks to a beautifully integrated optical drive door with an intelligently engineered eject button.
Power-on and HD indicator - In a move away from traditional LED globe indictors, the "i" uses diffused light to show the XPC's activity state.
8-in-1 Card Reader - Supports the most commonly used formats including; SD, CF I, CF II, MMC, SM, MS, MSP, MD
Front I/O - includes two USB 2.0, FireWire 400, microphone and headphone ports
|
Chassis materials
With exacting attention to detail, the i-chassis uses standardized, recyclable materials to deliver superior structural integrity, and noise minimization.
As the first steel XPC, this model benefits from the structural integrity that only steel can offer. For example, steel acts to dampen sound pressure and vibration caused by vibrating hard drives and optical drives. Further, a steel heatsink retention module allows for a 100 -percent increase in the allowable CPU heatsink mass.
|
Standardized components
Designed to conform to established industry standards, the i-chassis provides new levels of scalability through support for standardized components. Including: power supplies, full-height thermal module and motherboards.
Shuttle, always at the forefront of technology, has identified standardized components as a way of driving value into the SFF market though established industry standards.
|
Beautiful inside
Designed from the ground up, this XPC is neat and tidy on the outside and in. Shuttle has gone to extreme lengths to ensure that when you open this computer, all the components are perfectly laid out.
|
Easy Installation
So easy, even a first time user can put a powerful XPC together in less than 20 minutes - From scratch. Removable HDD cages simplify installation, and pre-routed and clearly labeled cables make installing components an absolute breeze.There is quiet, there is Zen quiet, and then there is "i" quiet. The newest member to the Shuttle Silent X family, the SB86i is the quietest XPC ever designed.

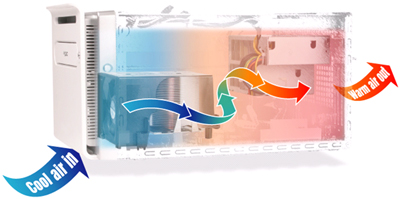

Why is the SB86i so quiet? Superior Cooling through In-line Airflow Designed to meet exacting thermal and noise standards, this exceptional computer delivers whisper quiet cooling through optimized in-line airflow. Intelligent internal layout, component placement and clever venting ensure excellent stability and reliability. And, because this XPC is designed to use just two standard high-quality, slow-rotation fans, this XPC generates more airflow while generating very little noise - providing better stability, reliability and comfort.

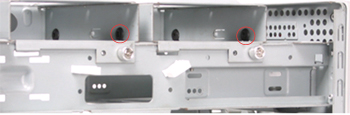

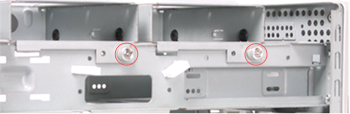

Venting Damping
Silent X Cooling and Noise Reduction Technology
Venting on the SB86i is designed to offer increased airflow to critical components, noiselessly. To do this, more low-impedance airflow vents have been added. The i-chassis succeeds with this task through large vents at the front of the machine, as well as supplementary venting located around the edges of the case. Further, because vents are located above and below the motherboard, critical components stay cool and stable.
SB86i Specifications
|
